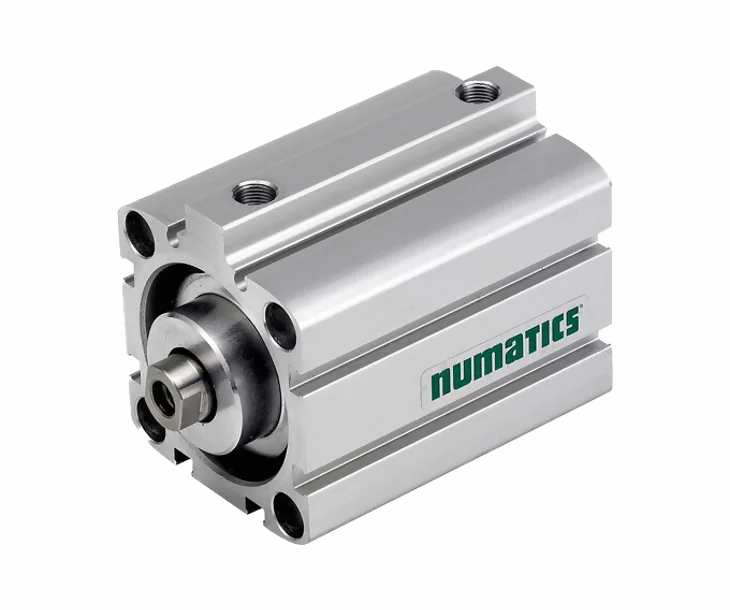

Asco Numatics 441 Short Stroke Compact Cylinders

Fill this form to order this product, we will return to you shortly

product details

Category Pneumatic Cylinder Tag ASCO 441 Brand: ASCO Numatics

Specification

The ASCO 441 series is a range of short-stroke cylinders with pressed end caps, ATEX approval, and the ability to handle unlubricated air. Manufactured from an extruded light alloy body design the 441 series is suitable for operating pressures up to 10 Bar with ambient temperatures ranging from -20°C to +70°C for the standard range. Additional high temperature applications are accommodated with the HTP adder to 120°C.


Detection:	Equipped for magnetic position detectors
Fluid:	Air or neutral gas, filtered, lubricated or not
Operating Pressure:	10 bar max.
Ambient Temperature:	-20°C to +70°C
Body Material:	Light alloy
Standards:	Single / Double Acting
Options:	Single / Double Rod, Anti-rotation Device
Bore Diameter:	Ø 8 to 100 mm
Thread Connection:	ISO 16030
