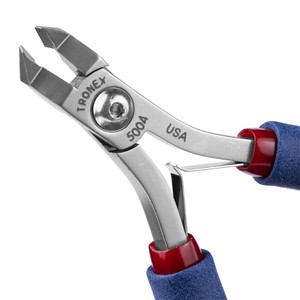

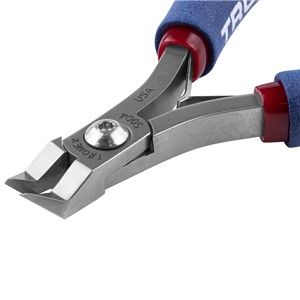

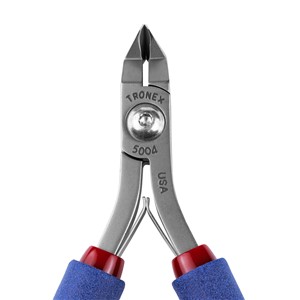

CUTTER, 50 DEGREE TAPER FLUSH STANDARD

Application: Cutting edges at an angle to the board are preferred when access to the object being cut is very limited or when the work area is very crowded. 5004 features a large cutting edge with a pointed tip and short jaw for enhanced control.

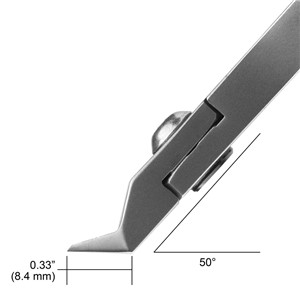

Head Shape: Angulated 50° Large Taper Head

Profile: Relief

Material: Carbon Steel

Material Hardness: 62-63 HRC

Cutting Edge: Flush

Cutting Capacity (soft copper wire): .008″ – .031″ (.2mm – 0.8mm); 32-20 AWG

Handle Length: Standard

Handle Grips: Cushion Double Sheathed, ESD Safe

RTT Resistance: <1 x 1011 ohms tested per ANSI/ESD STM11.13 Two-Point Probe, resistance measurement for static dissipative materials

Overall Length: 4.7″ (119mm)
