PETOL VALVE WHEEL WRENCHES are used to provide leverage on hand operated valve wheels. This series of wrenches permits a smooth snap “hammer-action” to make opening and closing stubborn valves easy. Each wrench will fit a variety of sizes and shapes of valve wheels. The special shaped opening in the wrench reduces the chance of slippage when working in overhead or crowded positions.
PETOL Valve Wheel Wrench
|
|
|
| PART NO. |
DESCRIPTION |
OVERALL LENGTH
(approx.) |
WEIGHT |

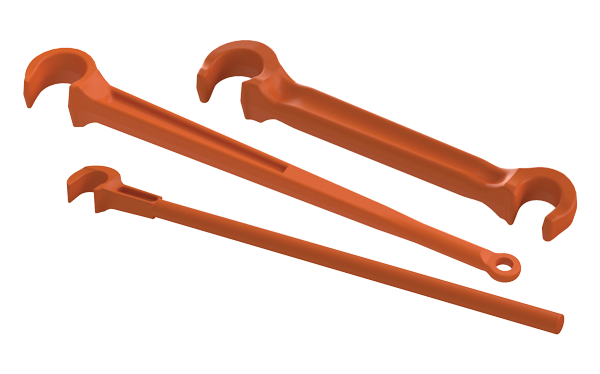

| STEEL |
| VW0 |
Forged, Double-end |
8″ |
14 ozs. |
| VW0CPTC* |
Forged, Double-end |
8″ |
12 ozs. |
| VW10 |
Forged, Double-end |
10″ |
1-3/4 lbs. |
| VW1 |
Forged, Single-end |
15″ |
2-3/8 lbs. |
| VW12 |
Forged, Double-end |
18″ |
4-1/4 lbs. |
| VW2 |
Forged, Single-end |
22″ |
4-3/4 lbs. |
| VW3 |
Forged, Single-end |
27″ |
10 lbs. |
| VW4 |
Forged, Single-end |
48″ |
16-1/4 lbs. |
| VW5 |
Cast, Single-end |
48″ |
16 lbs. |
| VW6 |
Cast, Single-end |
48″ |
15-3/4 lbs. |

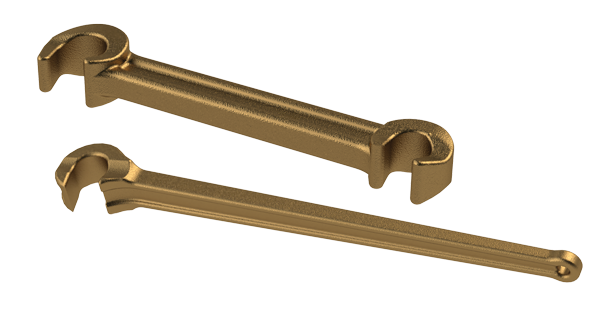

| BRONZE |
| VW0BR |
Cast, Double-end |
8″ |
15-1/4 ozs. |
| VW10BR |
Cast, Double-end |
10″ |
1-7/8 lbs. |
| VW1BR |
Cast, Single-end |
15″ |
2-3/8 lbs. |
| VW12BR |
Cast, Single-end |
15-1/2″ |
2-7/8 lbs. |
| VW2BR |
Cast, Single-end |
22″ |
4-3/4 lbs. |
| VW3BR |
Cast, Single-end |
30″ |
9-1/8 lbs. |

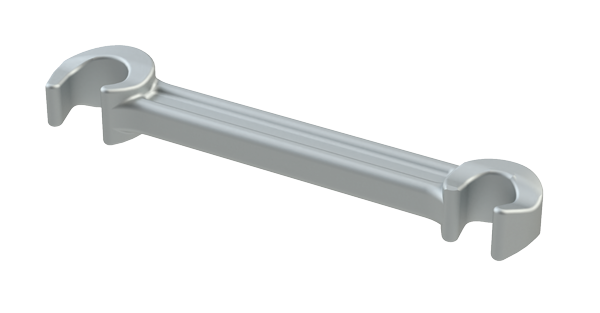

| ALUMINUM |
| VW0AL |
Cast, Double-end |
8″ |
5 ozs. |
| VW10AL |
Cast, Double-end |
10″ |
10-1/2 ozs. |
| *Cadmium plated, Teflon coated. |

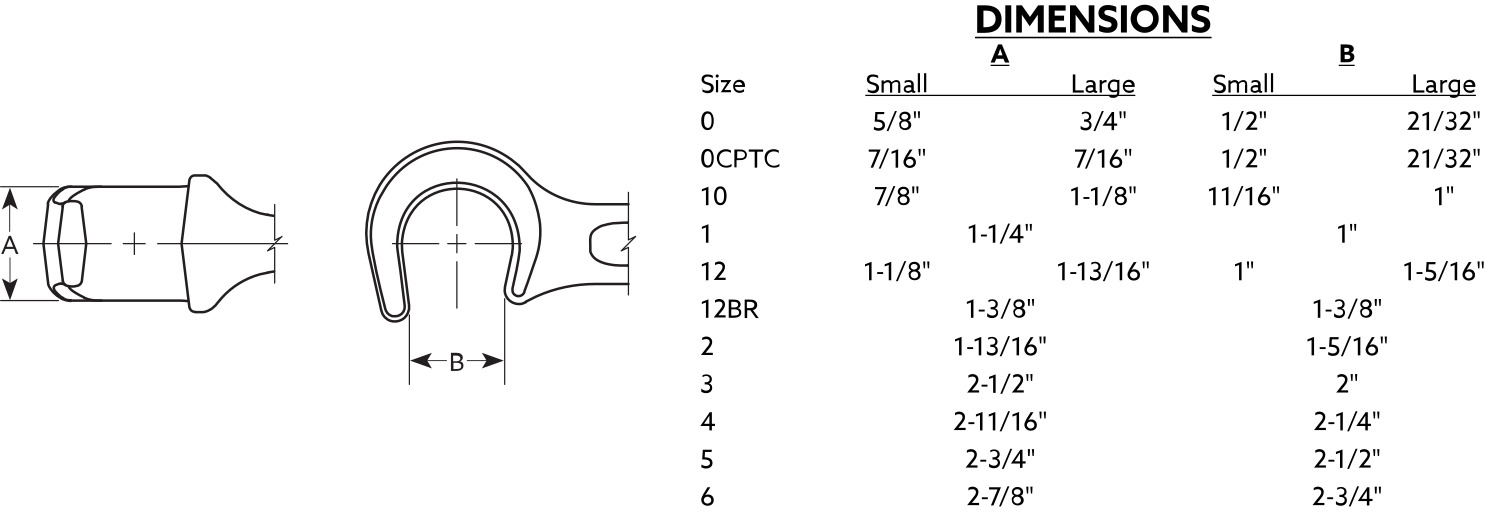

DIMENSIONS
|
|
|
A |
B |
| SIZE |
SMALL |
LARGE |
SMALL |
LARGE |
 |
0 |
5/8″ |
3/4″ |
1/2″ |
21/32″ |
| 0CPTC |
7/16″ |
7/16″ |
1/2″ |
21/32″ |
| 10 |
7/8″ |
1-1/8″ |
11/16″ |
1″ |
| 1 |
1-1/4″ |
1″ |
| 12 |
1-1/8″ |
1-13/16″ |
1″ |
1-5/16″ |
| 12BR |
1-3/8″ |
1-3/8″ |
| 2 |
1-13/16″ |
1-5/16″ |
| 3 |
2-1/2″ |
2″ |
| 4 |
2-11/16″ |
2-1/4″ |
| 5 |
2-3/4″ |
2-1/2″ |
| 6 |
2-7/8″ |
2-3/4″ |
