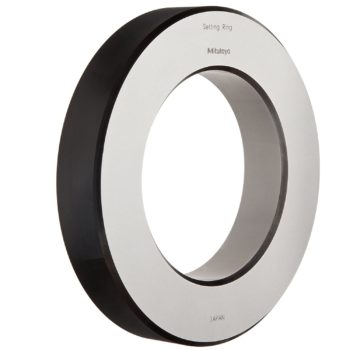

177-314 Mitutoyo Steel Setting Ring – 62mm
The Mitutoyo
177-314 Steel Setting Ring has the following specifications:
- Nominal Size: 62mm
- Tolerance Between Nominal and Actual Diameter: +/- .020mm
- Uncertainty of Marked Diameter Value: +/- .0015mm
- Roundness/Cylindricity: .0015mm
- Distance from the Side Face (H): 3.7mm
- Side of Warranted Calibration Surface (K): 12.6mm
- Outside Diameter: 112mm
- E Dimension for Type B: N/A
- Thickness: 20mm
- Type: A
All Mitutoyo Setting Rings can be certified to
NIST for an additional charges. Typical turn-around on having a setting ring certified is approximately 4 weeks. If you require the Mitutoyo
177-314 steel setting ring certified prior to shipping out, please reach out to our inside sales team for assistance.
Features:
- Used for quick and accurate setting of dial bore gages, Holtest and inside micrometers.
- If a setting ring of an optimal size is prepared, it can be used for calibration.
