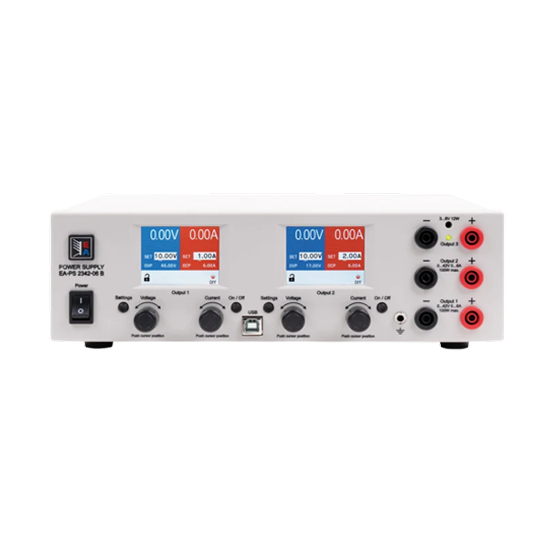

EA Elektro-Automatik EA-PS 2000 B Series Digital Bench Power Supply, 0 → 42V, 4A, 3-Output, 212W

EA Elektro-Automatik Laboratory Power Supply

The EA Elektro-Automatik laboratory bench power supply has a power rating of 212W with 2 channels. The output voltage rating for 2 main channels ranging between 0V to 42V with a current rating of 6A, another output has a voltage rating of 3V to 6V with a current rating of 4A. It switches off the output as soon as the 0 to 110% adjustable threshold of the nominal current is reached and protects the consumer from developing a defect due to overcurrent and thus prevents damage. The values of the adjustable outputs are displayed on a large 4-digit LED voltmeters and ammeters. It ensures galvanic separation of the outputs from the mains.

Features and Benefits

4-digit display for voltage and current
Chassis top and bottom closed
Convection or fan cooling
Fan cooling
Microprocessor controlled
Operating temperature ranging between 0°C and 50°C
Safety output sockets

Applications

Educational institutions
Industrial applications
Laboratories
Production and manufacturing units
Workshops

Certifications

EN60950

Fill this form to order this product, we will return to you shortly

product details

SKU EA-PS 2342-06 B Category Measuring and Testing Equipment Brand: EA Elektro-Automatik

Specification

Attribute	Value
Series	EA-PS 2000 B
Model Number	EA-PS 2342-06 B
Number of Outputs	3
Supply Voltage	90 → 264V ac
Output Voltage	0 → 42 V, 0 → 6V
Output Current	4 A, 6A
Power Rating	212W
Number of Displays	4
Type	Digital
Bench Power Supply Type	Laboratory Power Supply
Digital/Analogue	Digital
Output Connector	4 mm Safety Socket
Input Connector	IEC 320
Maximum Temperature	+50°C
Minimum Temperature	0°C
