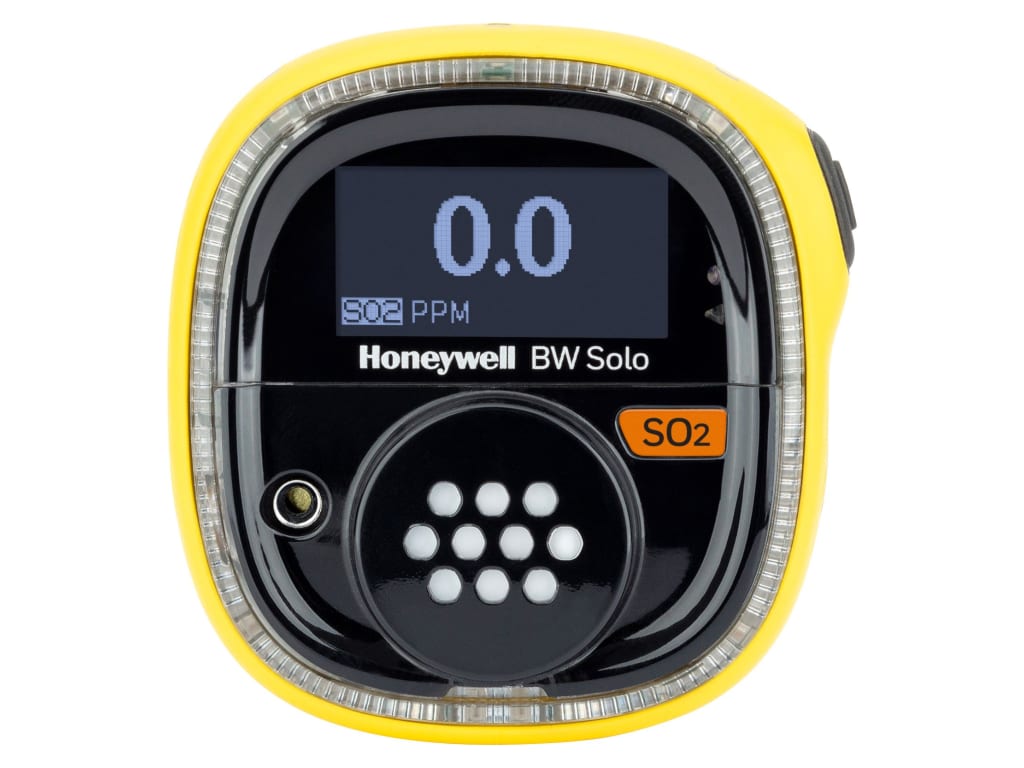

BW Solo – (SO2) Wireless – Yellow
Model: BWS1-S-Y
Detect sulfur dioxide (SO
2) with this single-gas detector that features Bluetooth, yellow housing, and a 0 to 100 ppm measuring range. In addition, this detector delivers a fast response, reliable performance, and long life, even in extreme environments, and has easy-to-replace sensors, filters, and batteries.
BW Solo Wireless Single Gas Detector – Product Selection Tool
Honeywell BW Solo is an easy to service single-gas detector with BLE connectivity that provides real-time visibility into the status and safety of hazardous-area workers, helping companies respond faster, more knowingly and decisively to safety incidents. Data from the detector or its docking station is downloadable to a PC, where it can be aggregated and managed through Honeywell’s Safety Suite software platform to automate key compliance tasks like regulatory records management. Can detect up to 15 user-selected common and exotic gases. User-friendly operation, lightweight convenience and ease of maintenance and serviceability can lower the long-term ownership cost of a gas monitoring system.
BW BWS1-S-Y Offers
This has high standards of sensor quality and reliability.
Features
- User-friendly operation
- Easy-to-read display for multiple languages
- Lightweight convenience
- Ease of maintenance
- Serviceability
- Enhanced reliability
- The easiest single-gas detector to service
- Compatible with IntelliDoX
W BWS1-S-Y Specifications
| Standard Measuring Range |
0 to 100 ppm |
| Resolution |
0.1 ppm |
| Operating Temperature |
-22 to 122°F (-30 to 50°C) |
| Humidity |
0 to 95% RH (non-condensing) |
| Ingress Protection |
IP66/68 |
| Alarms and Type |
Visual, vibrating, audible (95 dB); Low, High, TWA, STEL, non-compliance |
| Self-Test |
Sensor integrity, circuitry, battery and audible/visual alarms on activation; battery (continuous) |
| Typical Battery Life |
12 months |
| Connected Worker |
Bluetooth Low Energy (BLE) |
| User Options |
Reset TWA, STEL and Peak readings
Change High, Low, TWA and STEL alarm set-points
Latching alarms
Enable IntelliFlash and non-compliance indicators
Set calibration and/or bump test reminders
Assign worker and location assignments
Language select: English, French, Spanish, German, Italian, Russian, Japanese, Chinese, Korean, Portuguese, Dutch |
| Certifications and Approvals |
CSA, ATEX, IECEx, FCC ID, IC, RED |
| Dimensions |
2.7 x 2.6 x 1.6″ (7.0 x 6.7x 4.1 cm) |
| Weight |
3.6 to 4.1 oz (103 to 116 g), depending on installed sensor |
Tech Specs
Gas Detection/Personal Gas Detection Template
|
| Number of Gases |
Single |
| Gas Types |
CL2, CLO2, CO, ETO, H2, H2S, HCN, NH3, NO, NO2, O2, O3, Ph3, SO2 |
| Alarm (Personal Gas Detector) |
Audible-Visible-Vibrating, Connected Worker (Bluetooth or Wifi) |
| Type (Gas Detection) |
Portable |
| Charger Type (Personal Gas Detector) |
North America |
| CO2 |
No |
| CO |
Yes |
| H2S |
Yes |
| SO2 |
Yes |
| O2 |
Yes |
| NO2 |
Yes |
| O3 |
Yes |
| Ph3 |
Yes |
| NH3 |
Yes |
| CL2 |
Yes |
| CLO2 |
Yes |
| LEL |
No |
| Min Measurement Range CO |
0 PPM |
| Min Measurement Range H2S |
0 PPM |
| Min Measurement Range O2 |
0 PPM |
| Min Measurement Range NO2 |
0 PPM |
| Min Measurement Range O3 |
0 PPM |
| Min Measurement Range Ph3 |
0 PPM |
| Min Measurement Range NH3 |
0 PPM |
| Min Measurement Range CL2 |
0 PPM |
| Min Measurement Range CLO2 |
0 PPM |
| Max Measurement Range CO |
2000 PPM |
| Max Measurement Range H2S |
500 PPM |
| Max Measurement Range SO2 |
100 PPM |
| Max Measurement Range O2 |
30 % |
| Max Measurement Range NO2 |
100 PPM |
| Max Measurement Range O3 |
1 PPM |
| Max Measurement Range Ph3 |
5 PPM |
| Max Measurement Range NH3 |
1000 PPM |
| Max Measurement Range CL2 |
50 PPM |
| Max Measurement Range CL02 |
1 PPM |
| Self-Calibrated |
Yes |
Test Equipment General Attributes
|
| Shipping Weight |
0.40 LBS |
Easy to service for long life and low cost
No need to take apart the Honeywell BW Solo to replace components. To change out the sensor filters, just pop off a door on the front of the detector – no screwdriver required. Sensor and battery replacement are also easy.
One-button operation
Honeywell BW Solo is easy to operate – even if you’re wearing gloves. Using this button or the Honeywell SafetySuite Device Configurator software, you can easily configure setpoints, latching alarms and other parameters. Also access measurements for short-term exposure limit (STEL), time-weighted average (TWA) and the highest concentration of gas detected in the past 24 hours.
Compatible with IntelliDox (optional)
The BW Solo is compatible with the IntelliDox automated instrument management system.
The Honeywell IntelliDoX instrument management system combines smart docking modules with Fleet Manager II software to provide automated instrument management, helping drive productivity, reliability and efficiency. Place the detector in the docking module, and it automatically tests the gas detector and sensors while transferring data to the docking station.
