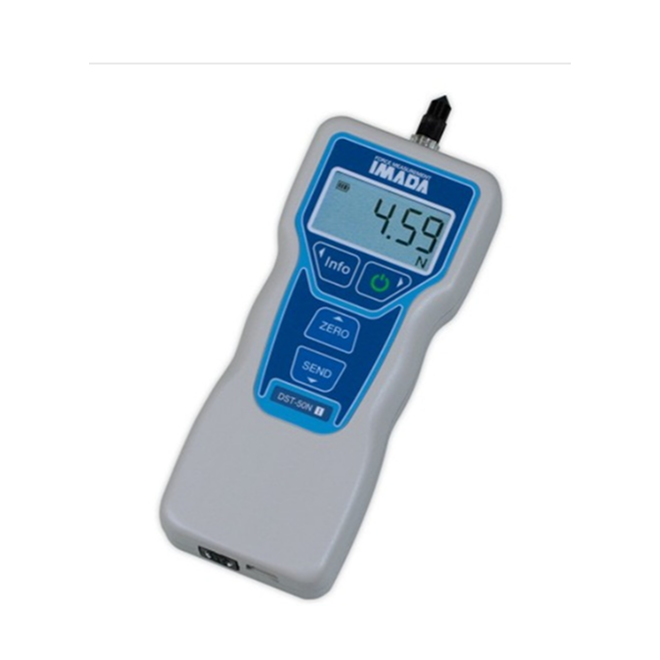

Digital Force Gauge IMADA DST-500N 500N/0.1 N

Digital Force Gauge IMADA DST-500N 500N/0.1 N

DESCRIPTION
  • Estimated Lead Time : Usually ships in 1-10 working days
  • Manufacturer : IMADA CO.,LTD
  • Part Number : DST-500N
  • Model : DST
  • Accuracy : ±0.2%F.S.(full scale)±1digit
  • Unit : N(mN, kN), kgf(gf), lbf (*1)
  • Display : 4-digit LCD
  • Sampling rate : Max. 1000 data/sec
  • Battery :
    • Approx.30 hours(when back light is off)
    • Approx.14 hours (when back light is on)    (need 4.5 hours for full charge)
  • Overload :  Approx.200%F.S
  • Power : Nickel-Metal Hydride battery (NiMH battery) , USB charge(PC, mobile battery, ACadapter)
  • Operating environment : Temperature:0 – 40°C, Humidity:20 -80%RH
  • Functions :
    • Peak hold(Tensile or compression)/Comparator(OK Judgement)/Sensitivity(3 steps)/Reversible display /Sign inversion/Setting lock/Date & Time/Off timer (Auto power-off)/Reminder for calibration schedule/Overload alarm
  • Output : USB/RS232C
  • Overload alarm :
    • Alarm to notify “near-overload state”: Approx. 90%F.S. (Alarm sound)Alarm to notify “overloaded state” : Approx.110%F.S.(Alarm sound/Indicationblinking)
  • Dimensions : Refer to Dimensions on page 5
  • Accessories :
    • CD driver (including data logging software)/USB cable/AC adaptor/Attachments (The types of attachments vary by models)/Carrying case/Instruction manual/Inspection certificate
  • Capacity : 500N
  • Display : 500.0N
  • Resolution : 0.1N
  • Thread : M6
  • Supplied attachments : S1(SR1*)~S6
  • Weight : 0.46 kg
  • Shipping weight : 3 kg
Brand: :

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Fill this form to order this product, we will return to you shortly
Order Form
product details
SKU IMDST-500N Category Brand:
  • Estimated Lead Time : Usually ships in 1-10 working days
  • Manufacturer : IMADA CO.,LTD
  • Part Number : DST-500N
  • Model : DST
  • Accuracy : ±0.2%F.S.(full scale)±1digit
  • Unit : N(mN, kN), kgf(gf), lbf (*1)
  • Display : 4-digit LCD
  • Sampling rate : Max. 1000 data/sec
  • Battery :
    • Approx.30 hours(when back light is off)
    • Approx.14 hours (when back light is on)    (need 4.5 hours for full charge)
  • Overload :  Approx.200%F.S
  • Power : Nickel-Metal Hydride battery (NiMH battery) , USB charge(PC, mobile battery, ACadapter)
  • Operating environment : Temperature:0 – 40°C, Humidity:20 -80%RH
  • Functions :
    • Peak hold(Tensile or compression)/Comparator(OK Judgement)/Sensitivity(3 steps)/Reversible display /Sign inversion/Setting lock/Date & Time/Off timer (Auto power-off)/Reminder for calibration schedule/Overload alarm
  • Output : USB/RS232C
  • Overload alarm :
    • Alarm to notify “near-overload state”: Approx. 90%F.S. (Alarm sound)Alarm to notify “overloaded state” : Approx.110%F.S.(Alarm sound/Indicationblinking)
  • Dimensions : Refer to Dimensions on page 5
  • Accessories :
    • CD driver (including data logging software)/USB cable/AC adaptor/Attachments (The types of attachments vary by models)/Carrying case/Instruction manual/Inspection certificate
  • Capacity : 500N
  • Display : 500.0N
  • Resolution : 0.1N
  • Thread : M6
  • Supplied attachments : S1(SR1*)~S6
  • Weight : 0.46 kg
  • Shipping weight : 3 kg
